600 Watt Heat-Sink

HPHS180AC / Heat Sink for Electronic Loads

Model Numbers: HPHS180xx

HPHS180AC

 ( 115 Vac 50/60 Hz Fan)

HPHS180AC-1

 ( 230 Vac 50/60 Hz Fan )

HPHS180DC

 ( 12Vdc Fan )

Heat-Sinks can be used with any Electronics Load models

Mount TWO (2) Electronic Loads

  • Specifications
    • This assembly comes with side panels, mounting hardware, and a high velocity high temperature. This system is designed to work in burn-in rooms at 50 Deg C. at a power level of 600 watts. No machining is required. Electronic Loads mount to heat-sink with supplied hardware. Uses (#8 Small Nuts 5/16") in slots for mounting. ( Size: Length 9" x Width 4.9 x Height 5.3 / Gold Iridite Finish )  ( Heat Sink 180 mm in length x 4.91" wide)
      Top Slot Mount Spacing 3.125"  Thermal Rise ~ 0.08/C Watt  Shipping Weight 15 LB.
      You can mount 2 Electronic Loads on this heat-sink
      .
        Special Order  2 Year Warranty!

    Price List for HPHS180

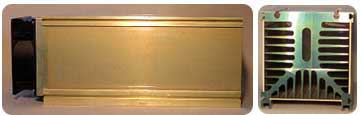

900 Watt Heat-Sink

HPHS300AC / Heat Sink for Electronic Loads

Model Numbers: HPHS300xx

HPHS300AC

 ( 115 Vac 50/60 Hz Fan)

HPHS300AC-1

 ( 230 Vac 50/60 Hz Fan )

HPHS300DC

 ( 12Vdc Fan )

Heat-Sinks can be used with any Electronics Load models

Mount THREE (3)  Electronic Loads

  • Specifications
    • This assembly comes with side panels,  mounting hardware, and a high velocity high temperature fan. This system is designed to work in burn-in rooms at 50 Deg C. at full load power of 900 watts. No machining is required. Electronic Loads mount to heat-sink with supplied hardware. Uses (#8 Small Nuts 5/16") in slots for mounting. ( Size: Length 14" x Width 4.9 x Height 5.3 / Gold Iridite Finish )  ( Heat Sink 300 mm in length x 4.91" wide)
      Top Slot Mount Spacing 3.125"  Thermal Rise ~ 0.08/C Watt   Shipping Weight 20 LB.
      You can mount 3 Electronic Loads on this heat-sink.

      In Stock2 Year Warranty!

  Price List for HPHS300

Remember you can use any heat-sink that will fill your needs with our electronic loads
from a flat plate to a cold plate, all you have to do is get the heat out.

The heat-sinks above are designed for extreme temperatures and high heat flows.

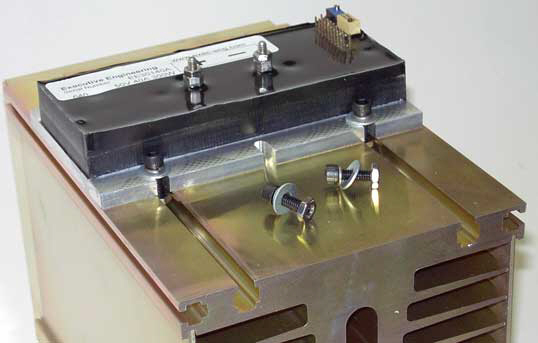

Electronic Load Mounting

Electronic Load Mounnting


Other heat-sinks that can be used with our loads!
Note:   That the following companies will sell large quantities only.

Wakefield Heat Sinks ( that fit our Electronic Loads )

Type (392 Series) and (860 Series) also type number (#5714),(#5658),(5655)(7300) with mounting slots
